Name: Hybrid-bond diamond wheel for carbide drill bit flute grinding (CNC)
Brand: ZHENGZHOU SHINE ABRASIVES CO.,LTD
SKU: 4v2 1A1 14A2 9A3
Price: 50.00 USD
Availability: InStock

Ana sayfa Ürünler CNC Dökme Tekerlekleri

Hybrid-bond diamond wheel for carbide drill bit flute grinding (CNC)

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Shine Abrasives
Sertifika:	ISO
Model numarası:	4v2 1A1 14A2 9A3

Ödeme & teslimat koşulları:

Min sipariş miktarı:	2 adet
Fiyat:	FOB
Ambalaj bilgileri:	Bir tane kağıt kutusunda.
Teslim süresi:	5 İş Günü
Ödeme koşulları:	L/C, T/T
Yetenek temini:	Bir haftada 1000 PCS

İletişim

Detaylı ürün tanımı

Tekerlek tipi:	Dümdüz	Kalınlık:	2-4mm
Maksimum basınç:	5Mpa	Arbor Boyutu:	7/8 İnç
GTİP Kodu:	6804211000	Malzeme:	Alüminyum Oksit / Silisyum Karbür / Elmas / CBN
Yeterlik:	Hızlı	Tip:	Tek Sıra
Kullanım:	ISUZU NKR94 NPR94 için	Dayanıklılık:	Yüksek
tekerlek:	100mm - 400mm	Bağ türü:	Vitrifiye / Reçine / Metal
Sıkıcı boyutlandırma:	12,7 mm - 32 mm	Boyut:	4-12 inç
Maksimum RPM:	6000rpm
Vurgulamak:	hybrid-bond diamond wheel for carbide drill bits , CNC grinding wheel for flute grinding , diamond grinding wheel with hybrid bond

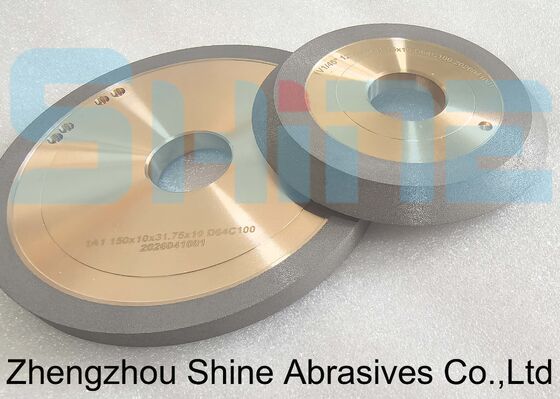

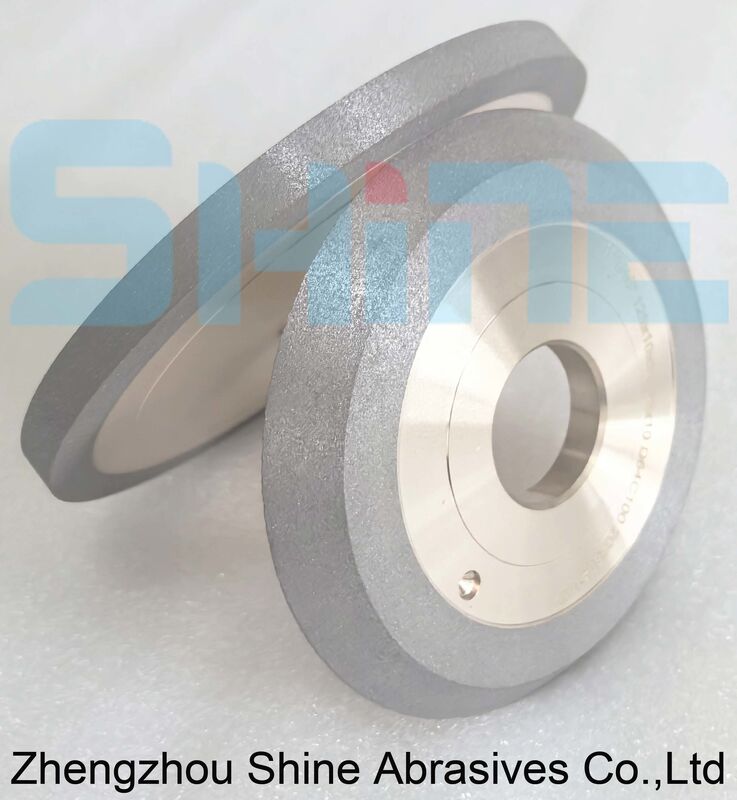

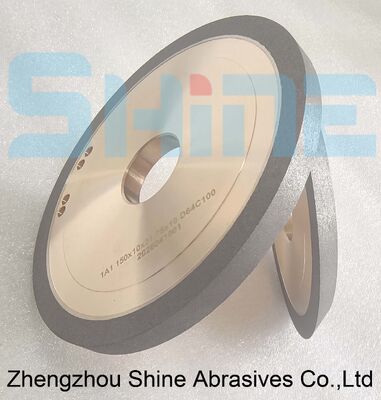

Hybrid-bond diamond wheel for carbide drill bit flute grinding (CNC)

Hybrid-bond diamond wheel for carbide drill bit flute grinding (CNC).hybrid bond diamond wheel uses a diamond layer held by a mix of binders/materials (commonly a resin + metal/plastic matrix, or a bond system engineered to combine properties). For carbide drill bit fluting/fultting (I assume you mean flute grinding/fulting), these wheels are usually specified for profile/helix grinding and flute regrind where you need consistent geometry and smooth chip-breaking performance.

Technical Parameters:

Parameter	Detail
Package	Carton Box
Shape	Cup, Straight, Cylindrical, Etc.
Warranty	1 Year
Material	Carbon Steel
Max Pressure	5MPa
Bond	Vitrified, Resin, Metal, Etc.
Application	CNC Grinding, Flute Grinding, Gash Grinding, Relief Angle Grinding
Max Temperature	150℃
Size	4-12 Inch
Max Speed	100 m/s

Wheel contacts the carbide along the flute relief/profile.
CNC controls infeed, feed rate, wheel speed, and dwell time to shape flutes consistently.
Coolant/air blast removes swarf and controls temperature.
The hybrid bond is designed so the wheel maintains shape while still releasing fresh diamond when needed (depending on how it’s formulated.
