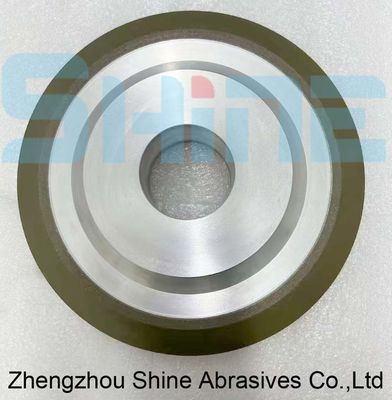

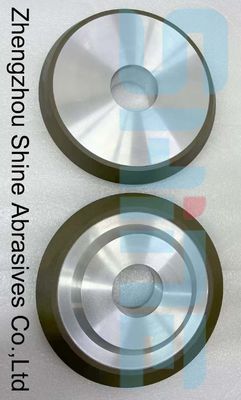

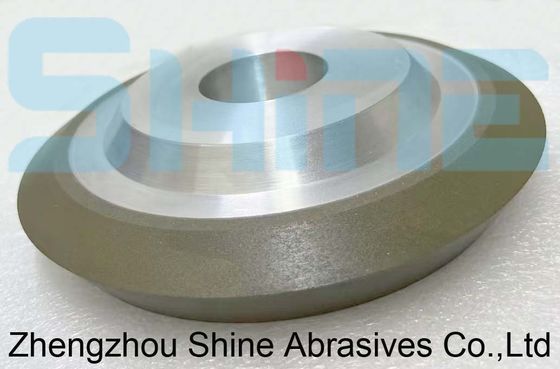

Name: Hybrid bond CNC diamond wheel for high-performance flute grinding
Brand: ZHENGZHOU SHINE ABRASIVES CO.,LTD
SKU: 4V2 1A1 14A2 1v1
Price: 50.00 USD
Availability: InStock

Ana sayfa Ürünler CNC Dökme Tekerlekleri

Hybrid bond CNC diamond wheel for high-performance flute grinding

Ürün ayrıntıları:

Menşe yeri:	ÇİN
Marka adı:	Shine Abrasives
Sertifika:	ISO
Model numarası:	4V2 1A1 14A2 1v1

Ödeme & teslimat koşulları:

Min sipariş miktarı:	2 adet
Fiyat:	FOB
Ambalaj bilgileri:	Bir tane kağıt kutusunda.
Teslim süresi:	5 iş günü
Ödeme koşulları:	L/C, T/T
Yetenek temini:	Bir haftada 1000 PCS

İletişim

Detaylı ürün tanımı

Başvuru:	CNC Makineleri	Hız:	6000rpm
Renk:	Gümüş	Maksimum basınç:	5MPA
Boyut:	6 inç	Arbor Boyutu:	7/8 İnç
Maksimum sıcaklık:	150°C	Elmas Kenarlık Boyutu:	6x6mm
Tahvil Türü:	Hibrit	Bağlamak:	Reçine
HS kodu:	6804211000	Yeterlik:	HIZLI
Maksimum hız:	100m/s	Maks Rpm:	6000rpm
Sertlik:	Yüksek
Vurgulamak:	Hybrid bond CNC diamond wheel , CNC flute grinding wheel , high-performance diamond grinding wheel

Hybrid bond CNC diamond wheel for high-performance flute grinding

Hybrid bond CNC diamond wheel for high-performance flute grinding.Hybrid bond is Resin Bond, Metal Bond, and or processing methods to create a Hybrid that encompasses enhanced properties to deliver high performance results for some of manufacturing’s toughest grinding applications.

Wheel sizes form:

Diameter of D	Diamond depth of U	R	X	H
50mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6	12.7,20,25.4 32 customize
75mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6	12.7,20,25.4 32 customize
100mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6	12.7,20,25.4 32 customize
125mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6	12.7,20,25.4 32 customize
150mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6 or 10	12.7,20,25.4 32 customize
175mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6 or 10	12.7,20,25.4 32 customize
200mm	2,3,4,5,6,7,8,9,10	1/2 U	3 or 5 or 6 or 10	12.7,20,25.4 32 customize

Others sizes are available per requested.

*Grinding, PCD, PCBN, CVD, MCD, hard alloy and other cutting tools

*Bonding agents: ceramic bonding agents, resin bonding agents, metal bonding agents

*The particle size can reach up to 10000#

*Cutting edge quality less than 5 microns

*Provide dressing wheels to trim PCD grinding wheels
*Precision grinding: capable of achieving high accuracy and surface finish
*The bowl is mainly used for tool sharpening and surface milling, suitable for grinding metal and non-metal hard and brittle material with low iron content.

Hybrid bond CNC diamond wheel for high-performance flute grinding 0
